GM (Corvette C7, Camaro and Cadillac) eLSD Leak Cause and Solution
If you’re driving a modern GM performance vehicle, you likely know about the "Service Rear Axle" warning. While the Corvette is the most famous victim, owners of the Camaro (SS 1LE/ZL1) and Cadillac (ATS-V/CTS-V) are discovering a shared frustration: a sophisticated Electronic Limited-Slip Differential (eLSD) that has a habit of leaking fluid.
If you’ve ever crawled under your Corvette, Camaro or Cadillac to find the source of a "Service Rear Axle" light, you might have been shocked by what you found. The factory "solution" for sealing the high-pressure eLSD hydraulic port? Teflon tape.
Yes, the same stuff used on showerheads and garden hoses is the only thing standing between your 600+ HP machine and a hydraulic failure.
The eLSD is part of a high-pressure hydraulic circuit that manages traction. Unfortunately, that power comes with a localized weak point—the hydraulic drain plug.
One System, Three Brands, One Major Headache
In high performance settings or when traction is required the eLSD system is working overtime. This system uses a hydraulic under high pressure to engage clutch packs.
The OEM plug design is a relic of the past. Here is why the factory setup is designed to leak:
- Pressure Shredding: The eLSD pump generates massive pressure spikes. Over time, these surges can actually "micro-shred" Teflon tape, creating paths for fluid to weep out.
- Heat Cycling: Your differential and exhaust generate intense heat. Teflon tape lacks the elasticity to expand and contract at the same rate as the metal housing, leading to a loss of seal integrity.
- Contamination Risk: If even a tiny strand of tape breaks off internally, it can migrate into the eLSD’s sensitive valve body or pump, leading to a "Service Rear Axle" warning that a simple fluid top-up won't fix.
The Solution: Engineering Out the Flaw
We knew there was a better way. We’ve replaced the "plumbing-grade" factory approach with a modern, integrated O-ring seal design.

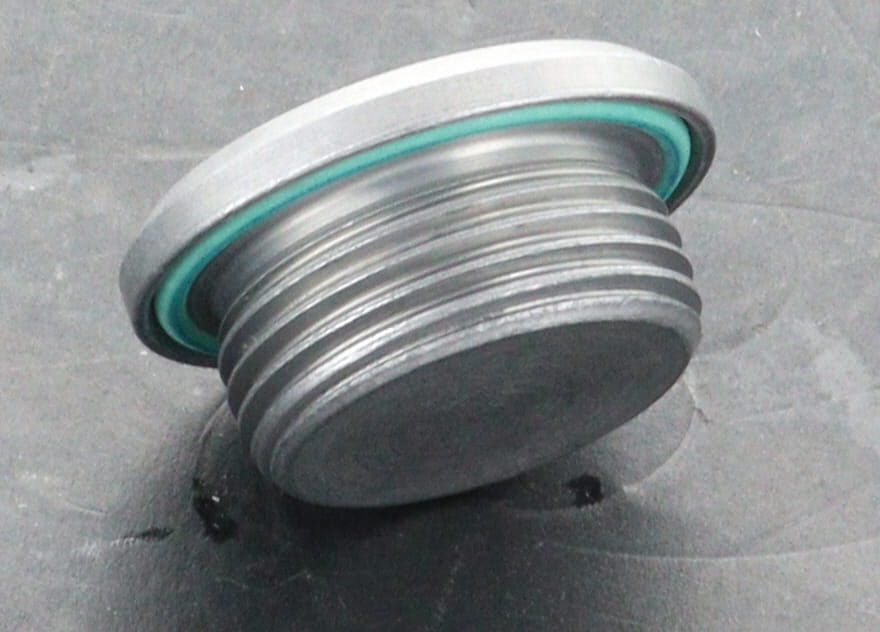

By moving to a plug with a built-in, high-temp viton o-ring, we’ve eliminated the need for tape entirely. Our solution creates a positive mechanical seal that stays bone-dry, regardless of how many track days or Toronto winters you throw at it.
Why the O-Ring Design Wins:
-
Positive Compression: Unlike tape, which relies on thread interference, our O-ring compresses into a dedicated seat, creating a leak-proof barrier that handles 2,000+ PSI with ease.
-
Vibration Resistant: The O-ring acts as a dampener, ensuring the plug stays torqued and sealed even under the heavy harmonics of high-speed driving.
-
Clean Installation: No more messy tape, no more worrying about debris in your hydraulic lines. It’s a simple "set it and forget it" upgrade.
-
Reusability: While Teflon tape must be meticulously cleaned and reapplied every time the port is opened, our O-ring design is built for consistency and longevity.
Stop the Bleeding
A "Service Rear Axle" light is often just a symptom of a simple leak that has gone on too long, lowering fluid levels and starving the pump. By fixing the seal today, you're protecting an eLSD unit that can cost upwards of $4,000 to replace.
Whether you're a track rat or a weekend cruiser, don't let a "hidden" plug dictate your car's performance.
Upgrade your eLSD seal today, purchase here.
